#MotorTalkMonday – NEMA rotor bar designs

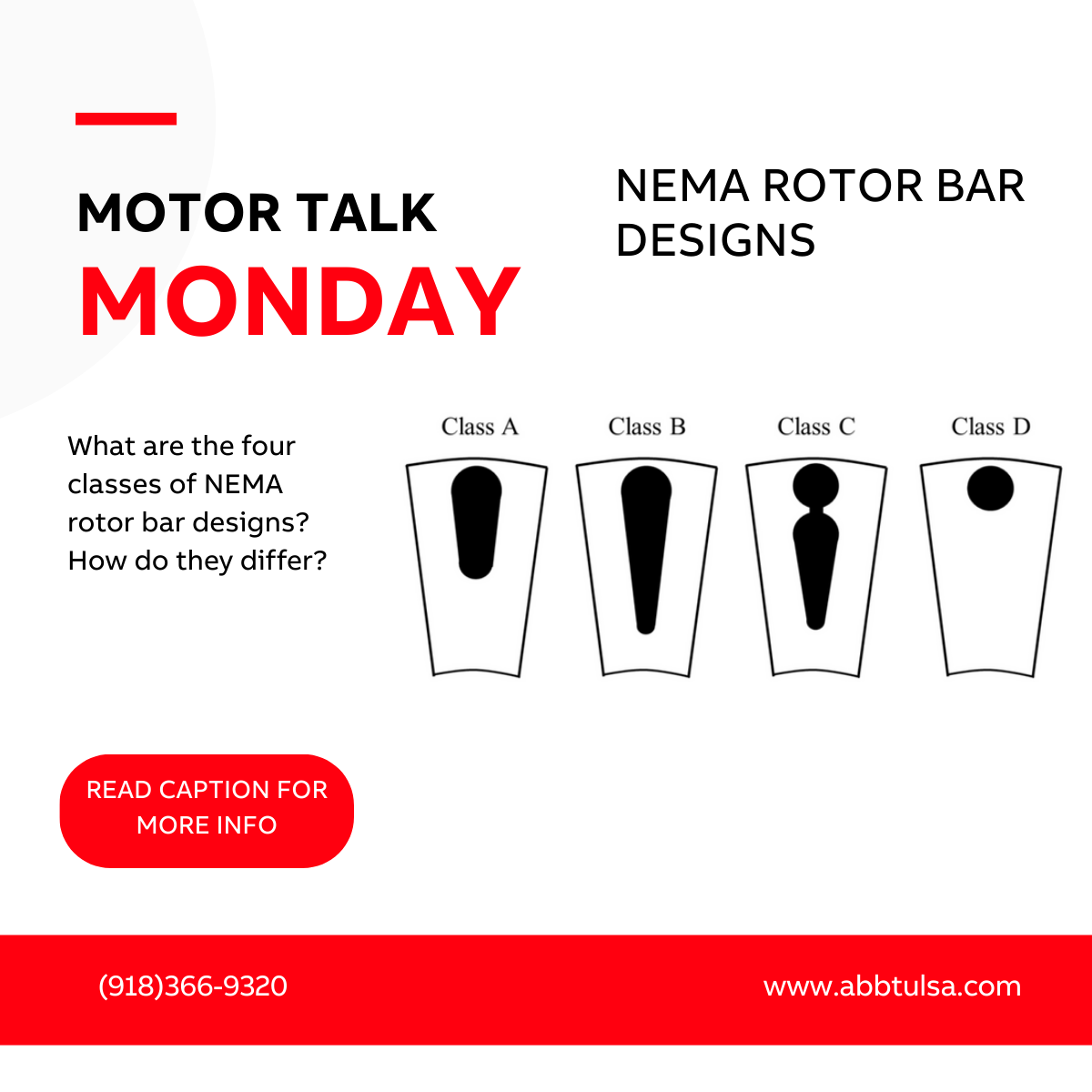

Let’s talk NEMA rotor bar designs (Class A, B, C, and D) and how they impact motor performance.
Each rotor design offers unique characteristics that affect starting torque, efficiency, and slip. Here’s a quick breakdown:
• Class A – Standard design with low slip and moderate starting torque, but high starting current. Ideal for applications with consistent load and minimal starting demands.
• Class B – The most common design. Low starting torque but high efficiency and low slip. Perfect for general-purpose motors in HVAC, pumps, and fans.
• Class C – High starting torque with low starting current. Great for hard-to-start loads like conveyors and crushers.
• Class D – Very high starting torque and high slip. Used in applications with heavy starting loads and variable torque, like punch presses or hoists.
Understanding rotor bar design helps you match motors to the right application—boosting performance and reliability.
Click the link below to watch a great, informative video from Zack Hartle that does a great job of breaking down the different rotor bar designs!
https://youtu.be/2-AnDNd857E?si=mPY75i9IxIyjuUz6
